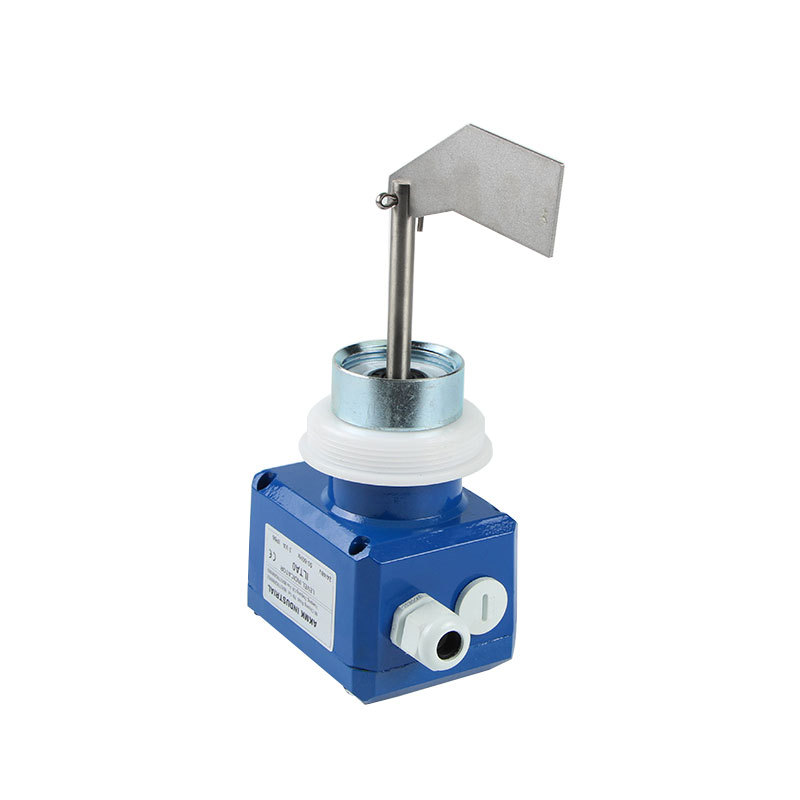

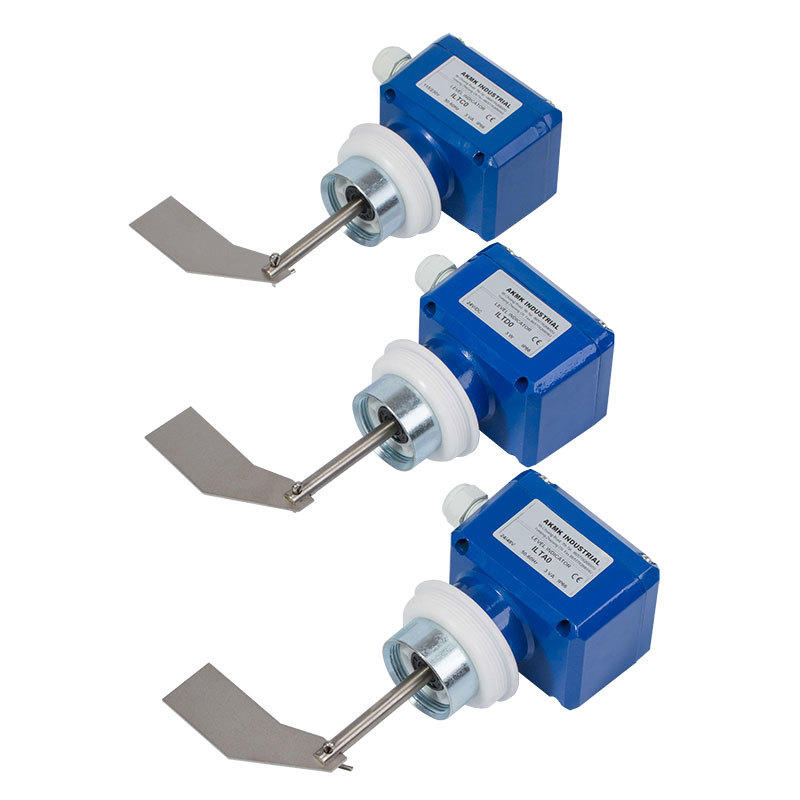

ILT-type Bin Level Indicators are designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.
ILT-type Bin Level Indicators are designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.Share this topic
TECHNICAL SPECS
Description
ILT-type Bin Level Indicators are designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.
Function
As soon as the material level reaches the measuring paddle rotation is blocked. As soon as the material level sinks below the paddle radius, rotation restarts activating other system components. The top or side-mounted indicators are commonly used for powdery and granular materials.
Features
Multivoltage design
All contact parts in stainless steel
High or low process temperature options
Various process connections
ATEX-certified
Benefits
Easy to install
Cost-effective
Reliable level measurement of bulk solids
Different measuring paddle types, suitable for all densities
Floating microswitch AC max. 250 V, 2 A, 500 W DC max. 300 V, 2 A, 60 W
Enclosure
IP 65
Process Connection
Thread G1 1/4", G1 1/2", G2 1/2"
Material Vane Shaft & Measuring Vane Material
Plastic
Friction Clutch
Protection of the gearing from impact of the measuring vane
Pickup Delay
Appox. 1.3 sec
Sensitivity
Adjustable via reset force of spring in three positions
Speed of Measuring Vane
1 rpm
Container excess pressure
max. 0.8 bar
Temperature inside vessel
-20°C ~ 80°C
