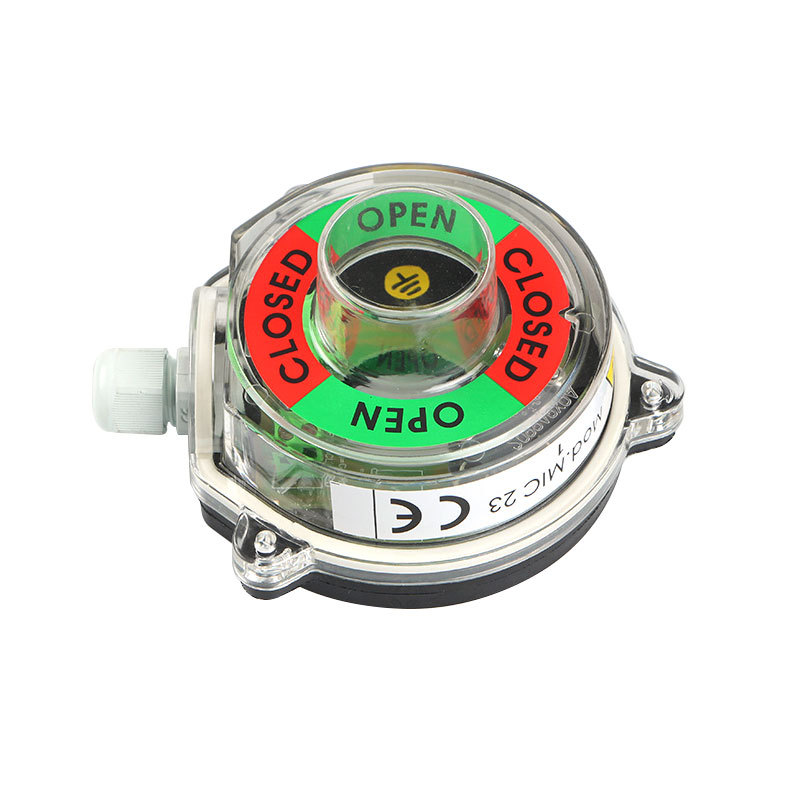

The mic23 series limit switch box is a multifunctional device that can provide visual indication of valve position and electrical feedback of two micro switches. Suitable for CP type actuator, switch feedback AE actuator output signal.
The mic23 series limit switch box is a multifunctional device that can provide visual indication of valve position and electrical feedback of two micro switches. Suitable for CP type actuator, switch feedback AE actuator output signal
Technical characteristics
The PC shell is strong, and the switch position can be clearly identified and indicated
Protection level: IP 67 / NEMA4 and 4X (standard) IP68 (optional)
Equipment: the positioning component signal can be adjusted
Mechanical switch: 2SPDT
Contact: 250VAC / 16A, 400VAC / 10A
Single line interface: PG9
Terminal: 5 points (0.08-2.5 square millimeters)
Item
Standard
Enclosure
Weatherproof IP67/NEMA4 & 4X
Temperature
-20°C to 80°C
Conduit Entries
2 x M20
Terminal Strips
8 points (.08-2.5mm²)
Position Indicator
Closed: Red, Open: Yellow
Switches
Mechanical switch x 2 SPDT
External Coating
Polyester powder coating (black)
Shaft
ISO Standard (17mm long)
Housing
Powder coated die cast aluminium
Cam
Quick Set spring loaded splined cam (no need to adjust again after initial setting, set without tools)
Mounting Interface
Namur
Max Current
10 AMP AC, 2 AMP DC
