Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds of vibrating equipment virtually in all industries. The motovibrators come with single phase, tree-phase or DC motor for application in the presence of potentially flammable dusts in hazardous environments.
Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds of vibrating equipment virtually in all industries. The motovibrators come with single phase, tree-phase or DC motor for application in the presence of potentially flammable dusts in hazardous environments.
Description

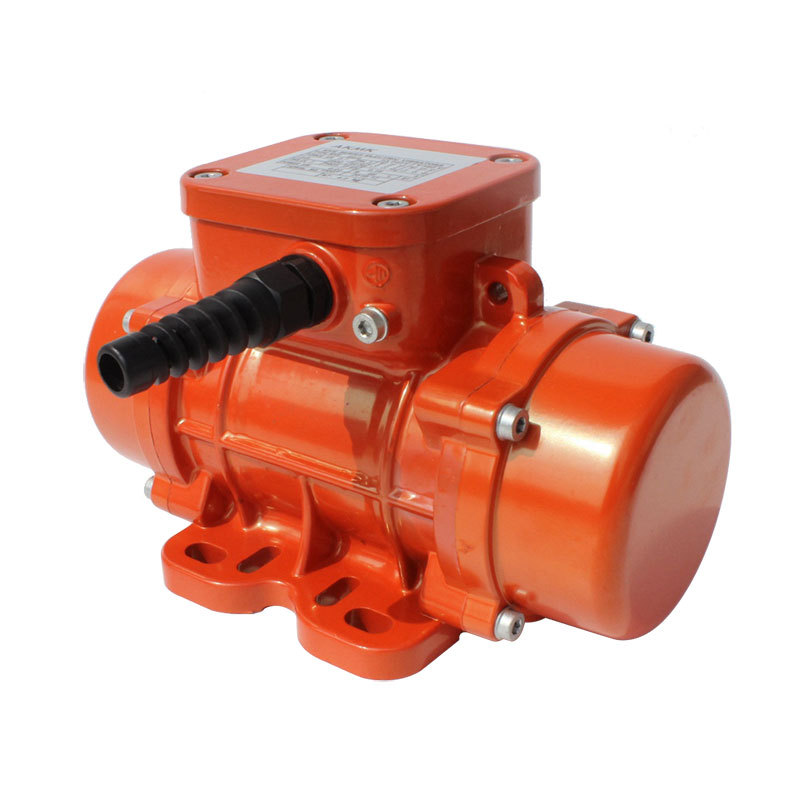

MVE External Electric Motovibrators consist of an electric motor housed in a sturdy cast casing, with eccentric weights fitted on both shaft ends.
Function
MVE External Electric Motovibrators can be used as flow aids, on hoppers or silos to improve material discharge, or as drives on vibrating machines for several purposes such as conveying, screening, sizing, or compacting in a variety of industries.
When the MVE is switched on a sinusoidal centrifugal force is provided by rotation of the eccentric weights. With only one MVE fitted on a vibrating machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.
Features
Centrifugal force: 20 ~ 26,000 kg
Vacuum-impregnated windings using Class F insulating materials
Premium quality bearings
Benefits
Wide range of centrifugal force covering all possible applications
Multiple voltages matching electric specifications worldwide
Options
2, 4, 6, 8 poles three-phase
2 poles single phase
DC motors available
Accessories
PTC standard from size 60 (available on request for smaller sizes)
Split covers for quick mass adjustment on request from size 60
