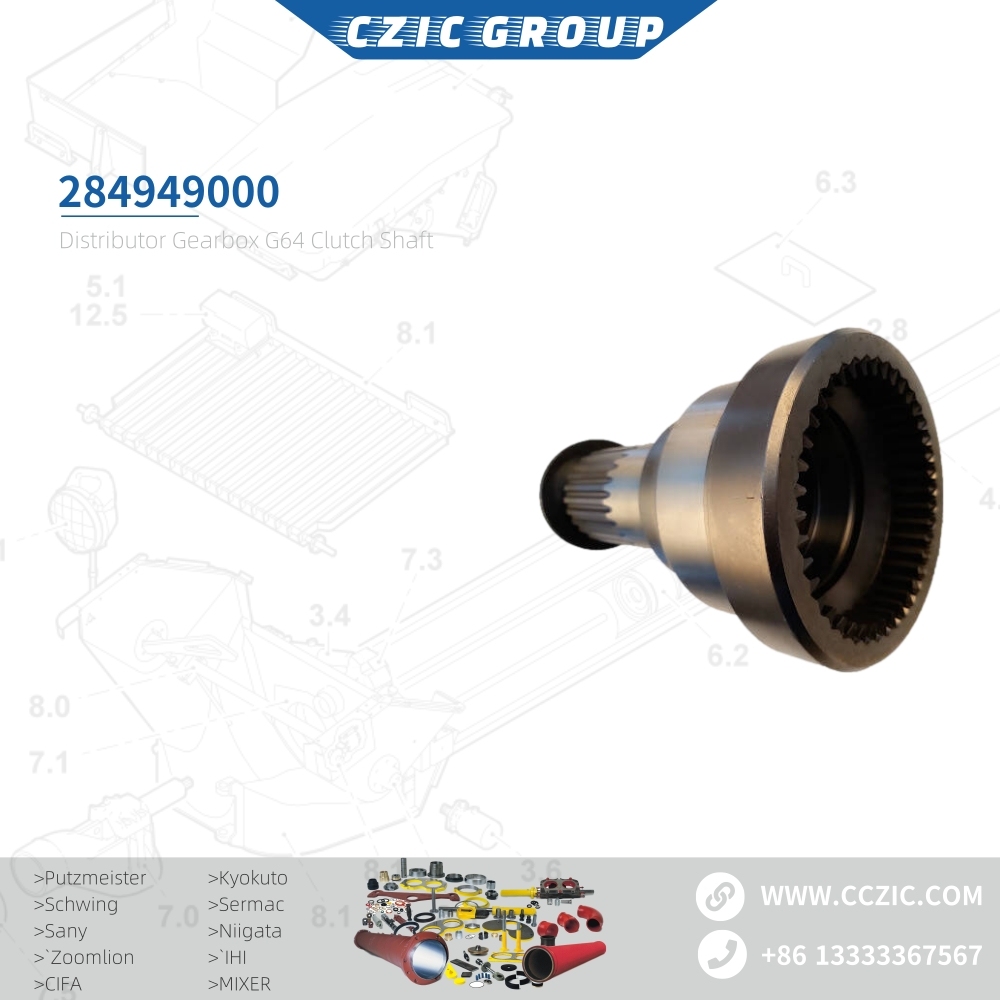

The Critical Role of the Distributor Gearbox G64 Clutch Shaft (Part No. 284949000) in Power Transmission Systems
Introduction
In high-torque mechanical systems, the Distributor Gearbox G64 Clutch Shaft (284949000) serves as a precision-engineered linchpin, ensuring seamless power transfer between drivetrains and auxiliary components. Designed for industrial distributors, agricultural machinery, and heavy-duty conveyor systems, this OEM-grade shaft transcends conventional components through metallurgical excellence and dimensional exactitude.
Engineering Specifications & Design Philosophy
Material Integrity:
Forged from EN19 alloy steel (equivalent to AISI 4140), the shaft undergoes vacuum degassing and triple-stage heat treatment (quenching, tempering, cryogenic stabilization). This achieves:
Core hardness: 48-52 HRC
Surface hardness: 58-62 HRC via induction hardening
Fatigue resistance: >10⁷ cycles at 450 Nm torque
Geometric Precision:
Tolerance: ISO h6 (±0.013 mm) for bearing journals
Spline profile: DIN 5480-B-50x2x24f (lead error <0.02 mm/m)
Concentricity: ≤0.005 mm TIR (Total Indicator Runout)
Failure Mitigation Features:
Micro-polished fillet radii (R1.5) at stress-concentration zones
Shot-peened surface to induce compressive residual stresses electroless coating on spline teeth
Operational Applications & Performance Advantages
| Application Sector | Performance Impact |
|-----------------------------|------------------------------------------------------------------------------------|
| Combine Harvesters | Eliminates torsional vibration in PTO drivelines; reduces grain loss by 12% |
| Mining Conveyors | Withstands 200+ G-shock loads; extends service intervals to 8,000 hours Industrial Mixers | Prevents phase-lag in bidirectional clutches; cuts energy waste by 9% |
| Wind Turbine Pitch Gear | Corrosion-resistant in saline environments; MTBF >25,000 hours |
Key Benefits:
Zero-Backlash Engagement: Helical splines ensure synchronous torque transfer during clutch actuation.
Thermal Stability: Maintains yield strength up to 250°C (482°F) – critical for brakechangeability**: Backward-compatible with legacy G60/G62 gearboxes via adapter sleeves (included).
Why 284949000 Outperforms Generic Alternatives
Unlike reverse-engineered clones, this shaft leverages:
Strain Wave Analysis: FEA-validated torsional rigidity under asymmetric loading
Traceability: Laser-etched QR code linking to full material certification (ISO 10474-3.1B)
-co-Design**: 30% weight reduction vs. solid shafts via hollow-bore construction (Ø22±0.1 mm)
Conclusion: Partner for Uncompromised Reliability
The Distributor Gearbox G64 Clutch Shaft 284949000 represents the convergence of tribological science and practical durability. For OEMs seeking to eliminate drivetrain downtime or MRO teams rebuilding mission-critical gearboxes, this component delivers quantifiable ROI through:
Description: OEM-certified distributor gearbox clutch shaft (P/N 284949000) for agricultural, mining, and heavy machinery. Features heat-treated EN19 steel, DIN 5480 splines, and anti-fretting coating. Request datasheets.
