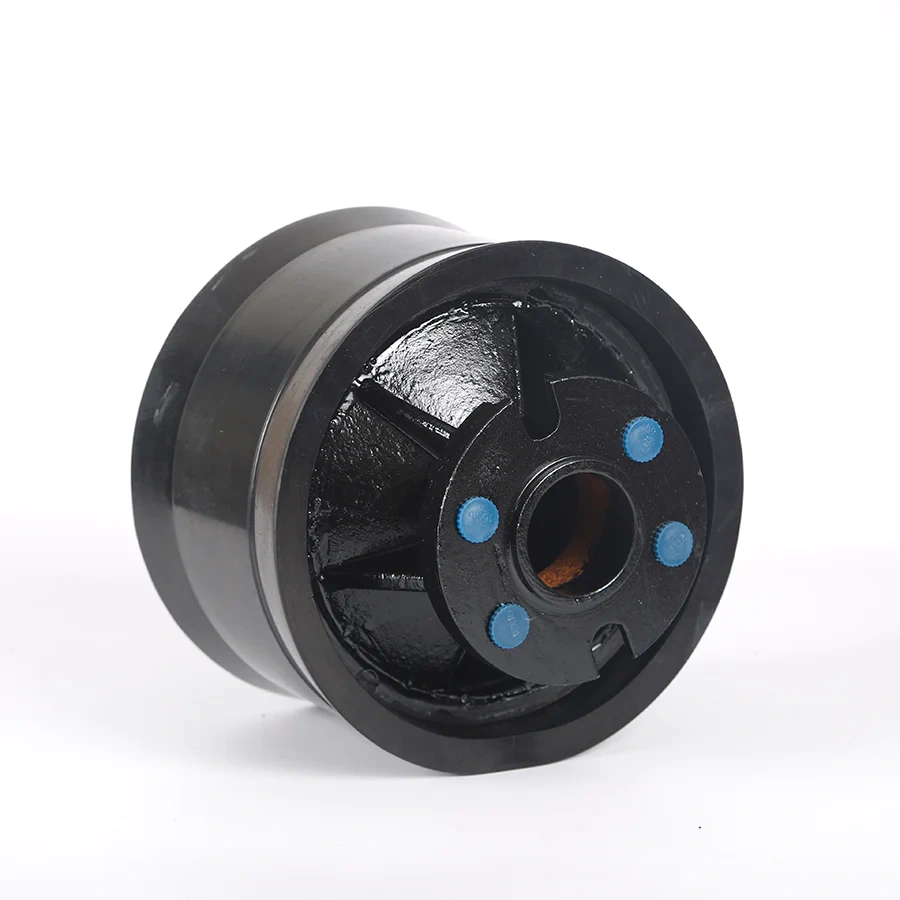

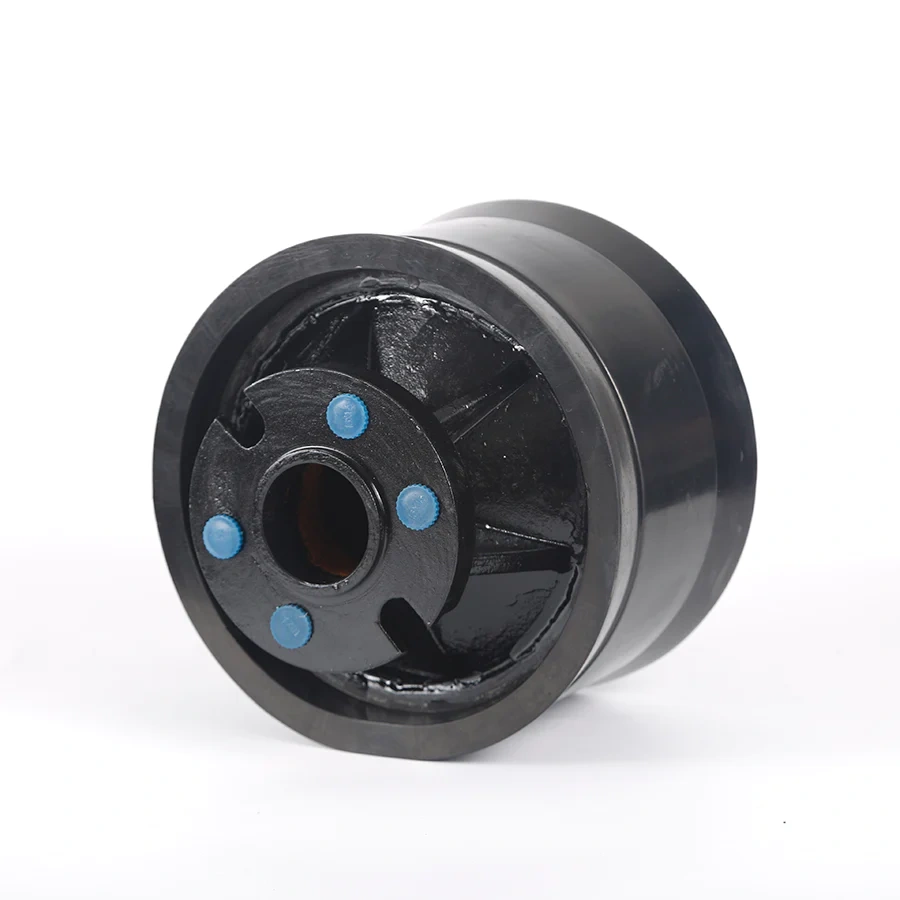

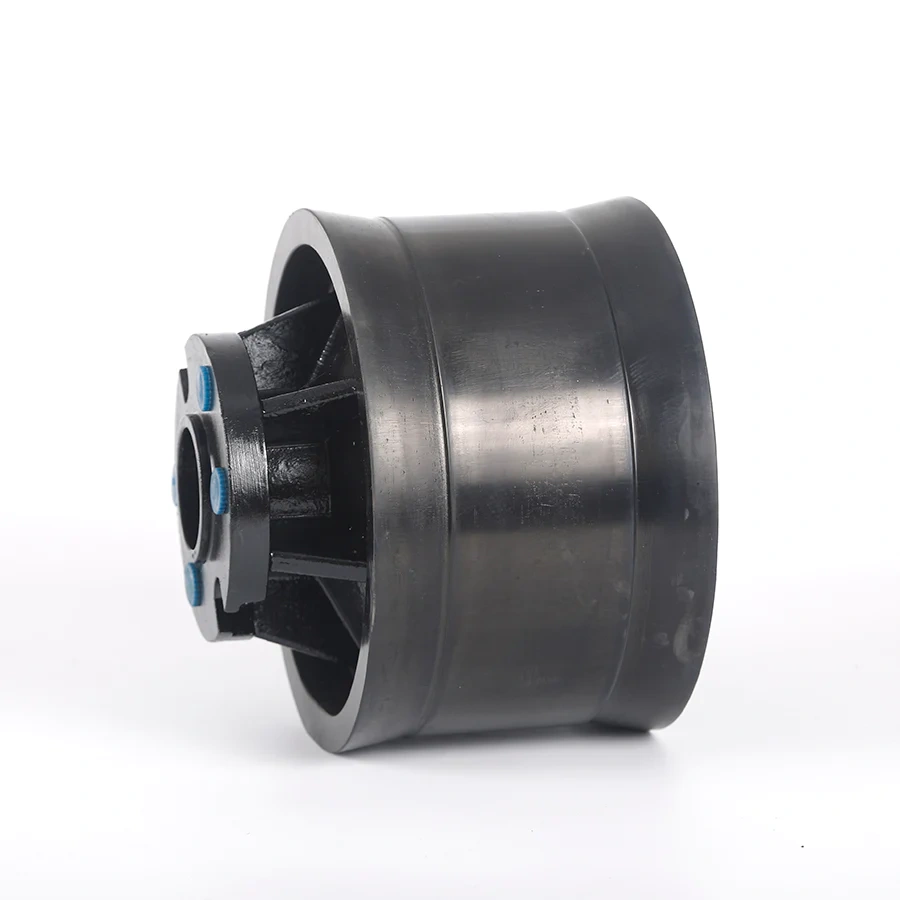

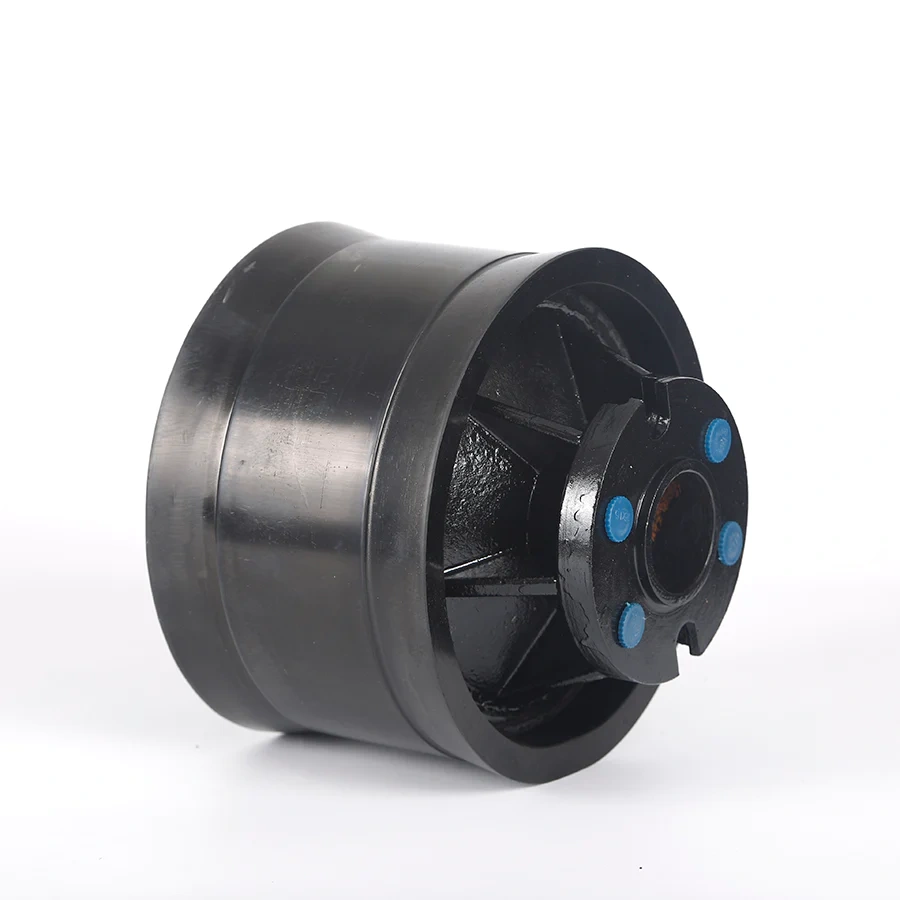

This DN230 piston ram for Putzmeister concrete pump is the wear part that rides inside the delivery cylinder and pushes concrete out into the pipeline. It is on the pressure side every stroke, working against abrasive mix at full hydraulic pressure, and it is usually the first component to show the cost of a hard pour programme.
Workshops order it in two situations. In a planned rebuild, the ram is renewed during a scheduled service so the pump goes back on site with a fresh sealing face and a known service life ahead of it. In a breakdown, concrete has already started to pass the ram, line pressure has dropped and a pour is waiting — that is when the part has to be right first time.
It goes onto the standard delivery cylinder for this pump size without modification. As a supplier of piston rams for Putzmeister pumps, we match it to your pump by OEM reference before it is dispatched.
Made to the OEM specification. The ram is produced to the dimensions and fit of the OEM wear part, so it goes onto the standard delivery cylinder without modification and runs on the same liner surface. Sealed at the head. The NBR element is carried on the ram head itself, so the sealing face is renewed with the ram instead of being left behind on a worn body. Precision diameter. The nominal diameter keeps the ram square in the liner and spreads contact evenly, which reduces liner scoring and holds pumping efficiency where it should be. Built for cyclical load. The body is made to take repeated pressure reversals rather than one steady load — the duty cycle a concrete pump actually applies. Steady output. A ram that seals properly holds its pumping pressure and volume shift after shift, so the crew is not chasing a slowly fading output all day. Fewer unplanned stops. Renewing the ram on schedule, rather than after it fails, is what keeps a pump out of the workshop and on the pour. An independent alternative. It gives you the same fit and function as the OEM wear part without depending on the machine maker's own supply line.
Specifications
The concrete pump piston ram is a fundamental component within the hydraulic pumping system of Putzmeister concrete pumps. It translates hydraulic pressure into linear mechanical force and drives the ram forward within the material cylinder to push concrete through the delivery lines. The NBR seal integrated into the piston ram head creates a barrier between the hydraulic oil chamber and the concrete material cylinder, preventing cross-contamination, ensuring hydraulic system integrity, and maintaining pumping efficiency.
Specification
Detail
OEM number
085813005
Part name
Piston ram (delivery piston)
Nominal diameter (DN)
230 mm
Seal material
NBR (nitrile butadiene rubber)
Category
Concrete pump spare parts
Force transmission
Hydraulic pressure converted into linear mechanical force
Concrete displacement
Ram driven forward through the material cylinder, pushing concrete into the delivery line
Location in the pump
Delivery cylinder, ram head
Replacement type
Aftermarket replacement, not made by Putzmeister
Wear parts renewed alongside
DN230 delivery piston seal and guide ring
Supplied as
One piston ram
Seal Material & Build
The DN230-NBR name states the two things that decide whether this ram works: the nominal diameter and a nitrile sealing element. Both matter, and for different reasons.
For the DN230 piston ram for Putzmeister concrete pump, NBR is chosen because a concrete pump asks a seal to do two opposite jobs at once. On the oil side it has to resist hydraulic fluid without swelling, softening or losing its squeeze. On the concrete side it has to survive sand, cement fines and small aggregate dragging past it, plus the tearing and extrusion loads that appear each time the pump reverses. Nitrile handles that combination well, which is why it is the standard choice for delivery piston sealing elements.
The rubber sits on a machined ram body that has to stay dimensionally true. A body that is out of round or scored will not hold a seal for long, and the cylinder will keep passing material however new the lip is. Holding the diameter to the nominal size is what keeps the ram square in the liner, spreads contact evenly and avoids the drag that scores a bore.
Two practical points. Rubber ages — a spare that has sat for years in a hot workshop can harden before it ever runs, so look at the lip when the part arrives. And if your pump runs an unusual hydraulic fluid or unusually hot oil, tell us before ordering; nitrile covers normal concrete pump duty, but that is worth checking rather than assuming.
Working Cycle
Cylinder switching. The ram works as one half of a pair — while one ram pushes concrete into the line, the other draws a fresh fill from the hopper, and the S-valve swaps the flow between them.
Full-stroke contact. The concrete pump piston ram travels the whole length of the material cylinder on every stroke, so the entire sealing surface runs against the liner, not just the first few centimetres.
Sealing in both directions. The lip keeps hydraulic oil out of the mix and keeps water, cement fines and aggregate out of the hydraulic circuit; that two-way barrier is what protects the pump's oil.
Load at every reversal. The heaviest load lands on the ram head at each change of direction, which is why a tired lip tends to fail at a reversal rather than mid-stroke.
Timing with the S-valve. The ram only builds pressure once the valve has seated, so a leaking ram can look like a valve problem until the seal is actually inspected.
Pair logic. The second ram has run the same number of strokes as the one that failed, which is why rebuilds normally renew both sides together.
OEM Number & Fitment Check
2. Allow for printed variants. Numbers in this series are sometimes printed with a dot before the last three digits, or with the leading zero dropped; the digits themselves identify the part. 3. Measure if the number is unreadable. The nominal diameter is listed above — check the bore of the delivery cylinder, not the old ram, if the ram is badly worn. 4. Send the pump model with your enquiry. Model, serial number and a photograph of the old ram let us check the fit against our records before anything is ordered. 5. We confirm before dispatch. If the number you send does not point to the correct delivery cylinder size, we will tell you rather than ship a part that will not fit.
Brand names and OEM numbers are used for reference only.
A specification sheet for this part and our wider catalogue of pump, mixer and batching plant parts are available if your workshop needs them on file. - What the ram does not include. This listing is the ram on its own. The sealing element and the guide ring that sit on the ram head are separate wear parts: the DN230 NBR delivery piston seal carries OEM 080373003, and the guide ring normally used with it is 080672005. - The job the guide ring does. The ring takes the side load and keeps the ram centred in the liner, so the rubber lip only has to seal. Reuse a worn ring and the new ram runs off-centre, the lip extrudes into the clearance, and the same repair comes round again within weeks. - Matched wear life. Seal, guide ring and ram are all Putzmeister concrete pump spare parts that travel the same strokes through the same abrasive slurry. By the time the ram head is worn enough to change, the seal behind it has almost always reached the same point — which is why ordering the ram alone so often ends in a second order while the pump is still down. - One cylinder, one fit check. Seal and guide ring are sized for the same delivery cylinder as the ram, and the fit check is the same. Send the pump model or the OEM number and we confirm the whole set against the same record before anything is dispatched. - Do not cross the sizes. The same seal family also runs in DN150 (056839005), DN200 (080372004) and DN280 (086632007) cylinders, and none of those will fit a DN230 bore. If the number on the old part is unreadable, measure the cylinder bore rather than the worn ram. - Ship it as a rebuild set. Order the DN230 piston ram together with its seal and guide ring and they travel in one parcel under one fit check, alongside any accumulators, valves or hydraulic parts your workshop is restocking at the same time. - Stocked as a set. The seals and guide rings are held together with the piston rams, so a service team can take the complete wear set from one Putzmeister piston ram supplier instead of splitting the order and waiting on two deliveries. - What to tell us. Pump model, the OEM number on the ram and a photo of the old seal and ring are enough for us to put the correct three parts together — and to say so if your pump turns out to need a different bore size.
Target Applications
Putzmeister truck-mounted pumps are the most common home for this part — BSF, BSA and M series units running delivery cylinders of this size, where the ram is changed in the yard between pours. This DN230 piston ram for Putzmeister concrete pump also goes into stationary pumps on batching plant sites and on tunnel and high-rise work, where the machine runs long shifts and wear parts sit on a fixed replacement schedule, and into trailer-mounted pumps that move between small sites and have to start reliably every morning.
Wherever this concrete pump piston ram is fitted, the duty is the same: abrasive mix, high pressure and constant cycling. Contractors running harsh aggregate, long delivery lines or high heads put the most load through the ram head, and rebuild workshops handling fleet overhauls tend to keep a pair on the shelf so a machine is never waiting on a part.
Wear Signs & Replacement Timing
Falling output at the same settings. The pump holds its pressure setting but the concrete arrives more slowly, and the boom feels lazy at the engine speed that used to work.
Slurry where it should not be. Grit or cement fines appearing in the water box, or hydraulic oil that turns cloudy, mean the lip has stopped separating the two sides.
Visible lip damage. A torn, chunked, flattened or glazed sealing lip, or rubber that has hardened and cracked, will not seal again — a DN230 piston ram in that condition is finished.
One side weaker than the other. When one cylinder pumps noticeably softer than its twin, the ram on that side is the first thing to open up.
Stroke count. Bring the replacement forward to your planned service interval rather than waiting for a failure; a ram changed during a scheduled stop costs far less than one changed mid-pour.
Do not just swap the ram. If the liner is scored or the lip is torn, a new ram will fail the same way — inspect the bore and the guide ring before the replacement goes in.
Ordering & Delivery
Worldwide shipping. As a Putzmeister piston ram supplier we ship parts to customers worldwide; tell us the destination country when you enquire and we will confirm the shipping route.
Payment. We accept T/T or L/C.
Dispatch time. Orders are normally dispatched within 3–5 days after we receive them.
Carriers and transit. Most orders travel by FedEx, DHL, EMS or UPS and arrive in about 3–7 days. Public holidays, or events outside anyone's control such as an earthquake or a hurricane, can add a few days.
Tracking. Once your order ships we send the carrier name and tracking number, and you can follow the parcel on the carrier's website.
Address details. Please check that the shipping address and contact details on the order are complete and correct — a wrong number is the most common reason a part sits in a depot.
Returns. We give 15 days from receipt to check the parts. Contact us by email before returning anything and we will send the return address. The buyer pays return shipping unless the part arrived faulty or damaged. Once the return arrives and checks out, the refund is issued and reaches your payment account within a few days.
Stock and quantity. Availability moves with the season, so ask us to confirm current stock and the quantity you need before you schedule the job.
Related parts in one shipment. As a supplier of Putzmeister concrete pump spare parts we also cover seals, guide rings, accumulators, valves and hydraulic components, so a rebuild kit can travel in the same parcel instead of arriving in three.
Technical Support & Model Matching
Not sure a part will fit? Send us the OEM number, the machine model or a photo of the part you are replacing, and our technical team will check it against our records and confirm before you order. Founded in 2009, CZIC GROUP supplies Putzmeister concrete pump spare parts and construction machinery spares worldwide, with agents in more than 20 countries. We help buyers with part matching, fault diagnosis and installation or commissioning questions, before and after they order.
FAQ
How is the DN230 piston ram different from the piston seal?
The ram is the piston body that travels in the delivery cylinder and moves the concrete; the seal is the rubber element that sits on the ram head and does the sealing, usually with a guide ring behind it. They wear as a set, which is why a rebuild normally renews both. This listing is the ram itself.
Can my workshop fit this ram without special tooling?
Yes, in a normal pump workshop. Clean the liner and the ram seat, fit the seal and guide ring squarely, lubricate the lip before it enters the cylinder, and follow your pump manual for torque and clearance. Check the bore first — a scored or oval liner will shorten the life of any new ram.
Why is the pump still losing pressure after a new ram went in?
The ram is one link in the sealing chain. A worn cylinder liner, a tired piston seal or guide ring, a leaking S-valve or a hydraulic fault will all show up as low output. If pressure does not come back after a rebuild, check the liner and the valve side before blaming the new ram.
Does this part come with the seal and guide ring?
No — this is the piston ram on its own. The DN230 delivery piston seal and guide ring are separate wear parts and are usually renewed at the same time, so ask us for them together and they can travel in one shipment.
Can this ram be used in a pump from another brand?
It is dimensioned for DN230 delivery cylinders on Putzmeister pumps. If you are working on another make, match by cylinder diameter and OEM reference and send us the details — dimensionally equivalent parts do exist, but the fit has to be checked rather than assumed.
How do I confirm the ram I removed is the 230 mm size?
Measure the delivery cylinder bore rather than the worn ram, because a damaged lip can make the old part look smaller than it is. A bore that matches the nominal diameter, a DN230 marking on the parts list or the OEM reference on the ram body all point to this part.
