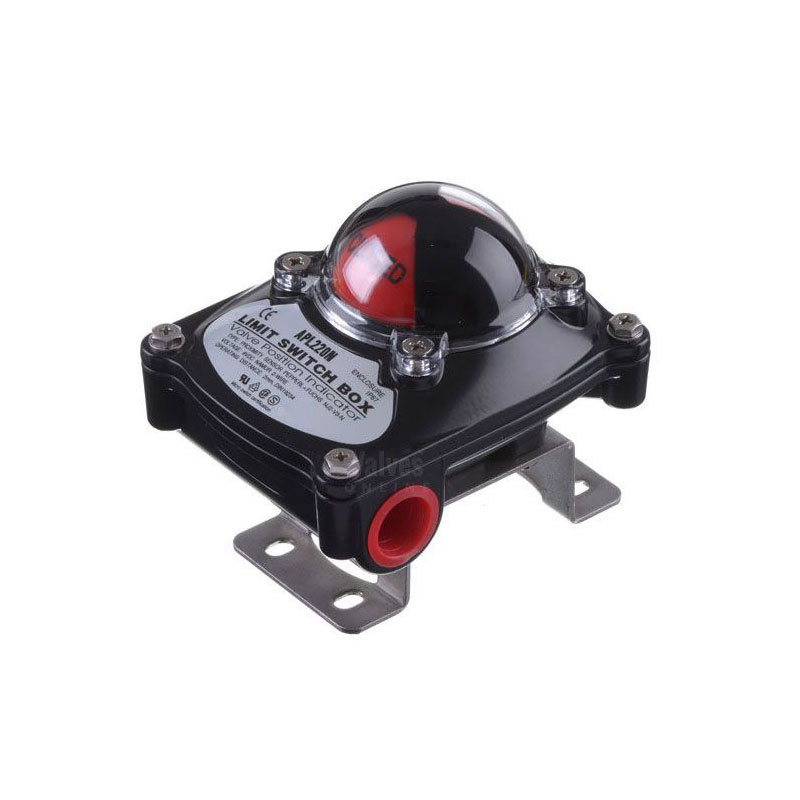

APL series limit switch box is a compact weatherproof enclosure with internal adjustable position switch and external visual indication. It has NAMUR standard installation and drive, which is very suitable for installation on quarter-turn actuators and valves.
APL series limit switch box is a compact weatherproof enclosure with internal adjustable position switch and external visual indication. It has NAMUR standard installation and drive, which is very suitable for installation on quarter-turn actuators and valves.
Features:
Robust and compact aluminum die-cast housing with polyester powder coating
Bolt fixed visual position indicator
Spring loaded spline cam. No need to adjust again after the initial setting. Easy to set up without tools
Double cable entry
Tether the cover bolts to prevent loss when the cover is removed
NAMUR standard stainless steel shaft and bracket
Limit switch box for pneumatic actuator
Powder coated aluminum body. IP67 protection. Two M20 cable entries. High visibility dome indicator. Two SPDT voltage-free switches. Maximum current 10 AMP AC, 2 AMP DC
The APL210 series limit switch box is a multifunctional device that can provide visual indication of valve position and electrical feedback of two micro switches. The terminal block and dual conduit entry points allow solenoid valves and micro switches to be wired via a single multi-core cable.
IP67 housing
Beacon indicator
Stainless steel shaft and mounting bracket
2 SPDT V3 micro switches
2 M20 cable entries
Simple spring-loaded switch adjustment
Options
Proximity sensor, IP68, three position indicator, NPT cable entry and alternative colors.
Item
Standard
Enclosure
Weatherproof IP67/NEMA4 & 4X
Temperature
-20°C to 80°C
Conduit Entries
2 x M20
Terminal Strips
8 points (.08-2.5mm²)
Position Indicator
Closed: Red, Open: Yellow
Switches
Mechanical switch x 2 SPDT
External Coating
Polyester powder coating (black)
Shaft
ISO Standard (17mm long)
Housing
Powder coated die cast aluminium
Cam
Quick Set spring loaded splined cam (no need to adjust again after initial setting, set without tools)
Mounting Interface
Namur
Max Current
10 AMP AC, 2 AMP DC
