Precision Pressure Gauge 0-400 bar: Engineering Excellence for Demanding Applications
Uncompromising Accuracy in High-Pressure Environments

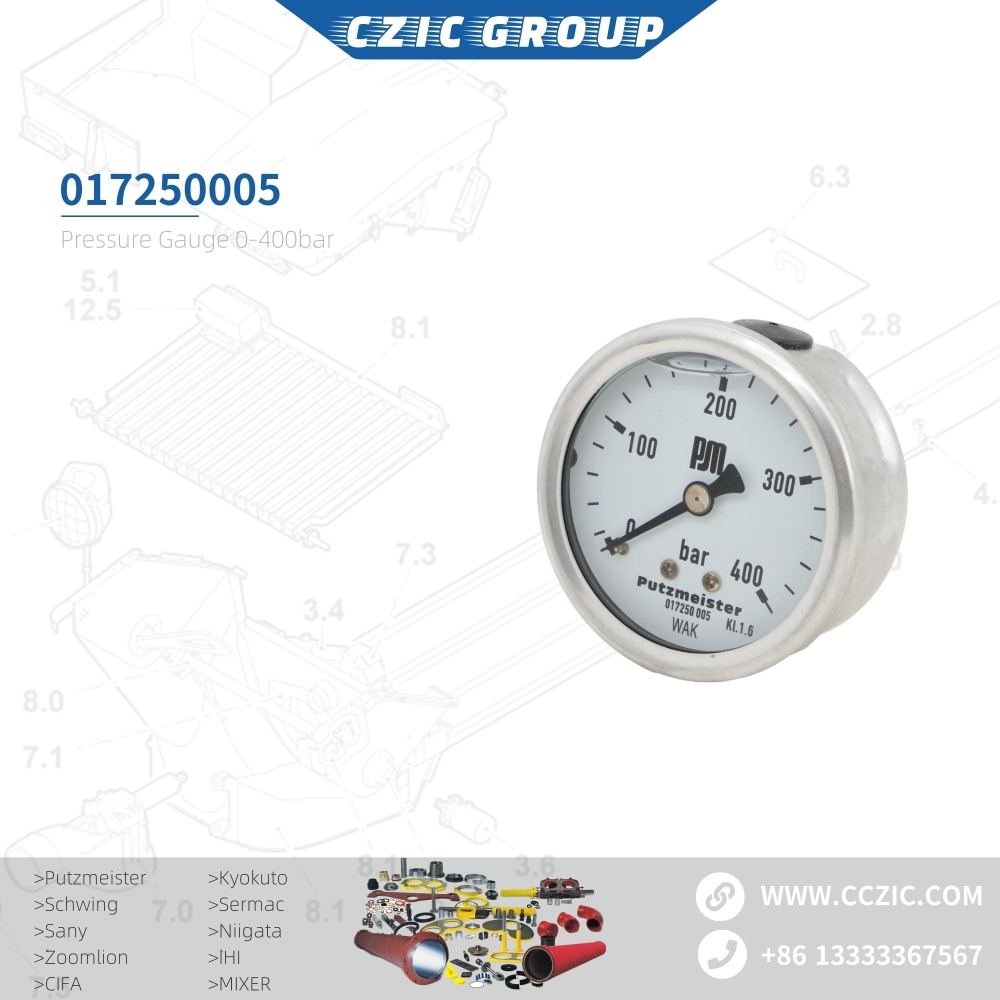

The Pressure Gauge 0-400 bar (Model: 10; 63; G 1/4") sets the industry benchmark for reliability in extreme-pressure monitoring. Engineered with a robust stainless-steel Bourdon tube mechanism and liquid-filled case (optionally available), this gauge delivers ±1.0% full-scale accuracy across its entire 0-400 bar range. The G 1/4" male thread connection ensures leak-proof integration with hydraulic systems, compressors, and industrial machinery, while its 63 mm diameter dial provides exceptional readability under high-vibration conditions.
Key Technical Innovations
Durability: Shock-resistant casing withstands 100g impact loads (IEC 60068-2-27 compliant) and pulsating pressures up to 80% of full scale.
Environmental Resilience: IP65-rated ingress protection and -20°C to +80°C operational range for harsh industrial environments.
User-Centric Design:
270° scale rotation for flexible installation
Zero-adjustable pointer for calibration integrity
Snubber valve compatibility to dampen pressure spikes
Industrial Applications
Hydraulic Systems: Real-time monitoring in injection molding presses (400+ bar operational cycles)
Energy Sector: Subsea equipment testing and pipeline integrity verification
Manufacturing: CNC machining centers requiring precise coolant pressure control
Extended Service Life: 5 million pressure cycles (verified per EN 837-1 standards)
Media Compatibility: Compatible with petroleum-based fluids, water-glycol, and air (diaphragm seal options for corrosive media)
Calibration Integrity: ≤0.25% hysteresis error after accelerated aging tests
Technical Specifications
| Parameter | Specification |
|--------------------|-----------------------------|
| Range | 0-400 bar |
| Connection | G 1/4" BSPP male |
| Accuracy | Class 1.0 (EN 837-1) |
| Case Material | Stainless steel (316L) |
| Window | Laminated safety glass |
| Process Contact| Brass w/ electroless nickel |
TKD Metadata
Title: High-Precision Pressure Gauge 0-400 bar | Hydraulic System Monitoring
Keywords:
400 bar pressure gauge
Industrial hydraulic gauge
G 1/4" pressure sensor
High-accuracy Bourdon gauge
Liquid-filled pressure instrument
Description: Professional-grade 0-400 bar pressure gauge with G 1/4" connection, featuring ±1.0% accuracy, IP65 rating, and 5M-cycle durability for hydraulic, manufacturing, and energy applications.
Request a performance validation report or discuss custom configurations (e.g., mV output, digital displays) – Contact our engineering team for application-specific solutions.
