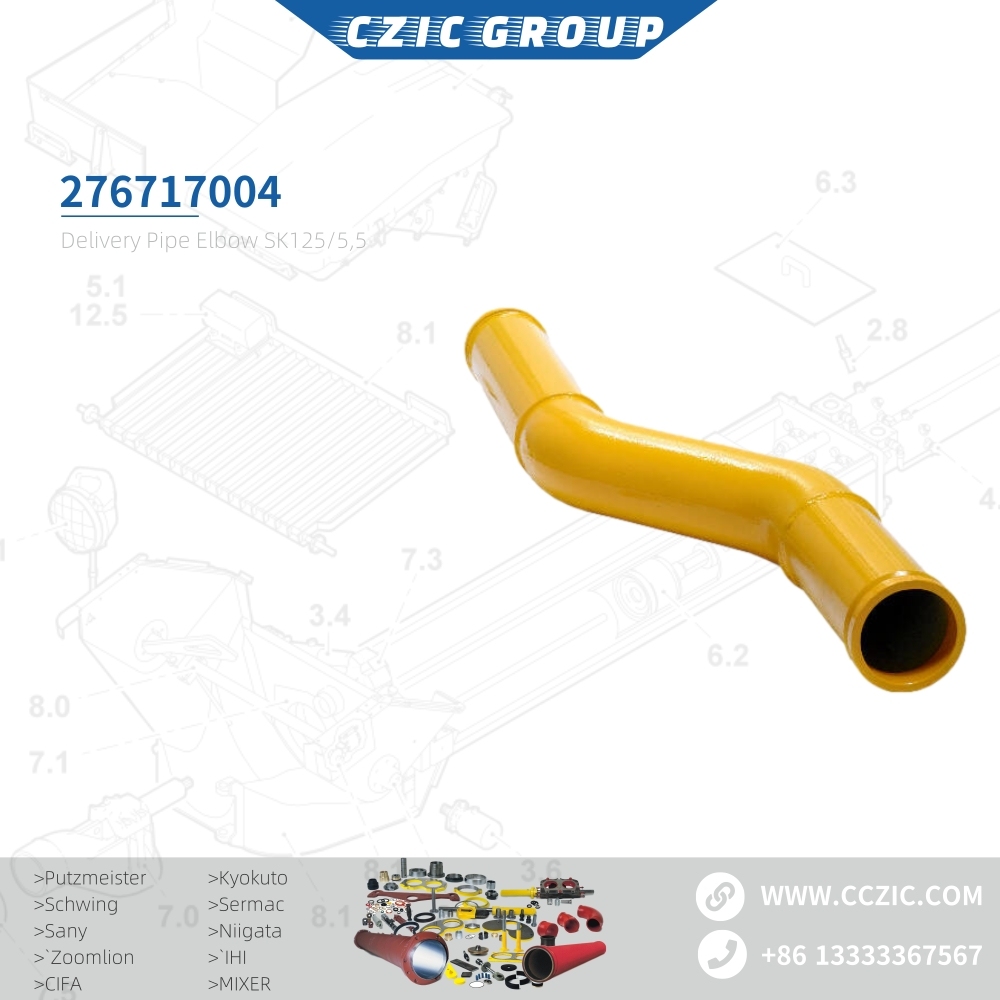

The Delivery Pipe Elbow SK125/5,5 is a critical component designed for high-efficiency fluid transfer systems. Manufactured to exacting industrial standards, this 125mm nominal diameter elbow features a 5.5D centerline radius curvature—optimized to minimize pressure drop and turbulence in pipelines conveying liquids, gases, or semi-solid materials. Crafted from ASTM A106 Grade B seamless carbon steel, it ensures exceptional corrosion resistance and structural pressures up to 1,500 PSI and temperatures ranging from -20°C to 350°C.
Advanced Technical Specifications
Geometric Precision: The 5.5D bend radius (687.5mm) reduces shear stress on conveyed media by 40% compared to standard LR elbows, preventing particulate segregation in slurry applications.
Surface Integrity: Internally polished to ≤3.2μm Ra smoothness, eliminating consumption by up to 15%.
Robust Construction: 8.2mm wall thickness with full-profile butt-weld ends, compliant with ASME B16.9 dimensional tolerances (±1.5mm ovality).
Protection: Externally coated with epoxy fusion-bonded layer (350μm DFT) for UV/chemical resistance, supplemented by VCI packaging for transit corrosion control.
Industry-Specific Applications
Oil & Gas: Facilitates directional changes in multiphase flow pipelines without erosion hotspots.
Chemical Processing: Compatible with acids/alkalis (pH 2–12) due to electro-polished interior.
Power Generation: Critical in FGD slurry recirculation systems with abrasion-resistant properties.
Mining: Handles tailings with >60% solids concentration without clogging risk.
Description: Industrial-grade carbon steel pipe elbow with 125mm diameter and 5.5D curvature, engineered for minimal pressure loss in chemical, oil/gas, and mining applications.
Request a datasheet or discuss custom certification requirements (PED 2014/68/EU, NACE MR0175) via our inquiry portal.
