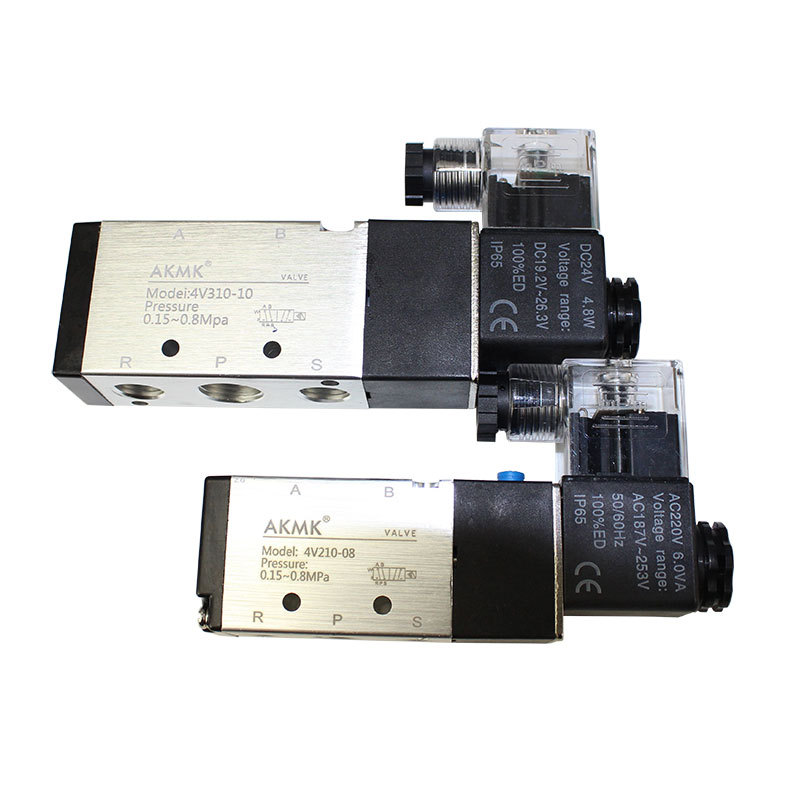

Electromagnetic pneumatic solenoid valve is suitable for controlling pneumatic actuator or cylinder.
Features
Standard features include manual operation
LED indicator plug (IP65)
Fully encapsulated low power coil
The unit can also be installed on a manifold of up to 12 units
Thread conforms to ISO 7.1 sealed thread
Valve body: aluminum
Valve seat: NBR
Pressure range: 1.5 to 8 BAR
Medium: Air
Options
Available with namur standard solenoid valve
Voltage: 24, 48, 110, 220 AC/DC
Size: 1/8", 1/4, 3/8, 1/2" BSP
stainless steel
DESCRIPTION
5 way 2 position solenoid valve (solenoid one end and spring on the other) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. This unit can also be mounted on a manifold of up to 12 units.
Model
Port Size (BSP)
Orifice ømm
CV
Pressure
Media Temperature
Weight Kg
Coil Specifications
4V110
1/8
5
0.67
1.5 to 8 Bar
5°C to 80°C
0.3
SC-A1 5 Watts 6 Volt Amps Class H Insulation 100% Ed
5 way 2 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Can be mounted on manifolds of up to 12 stations. Threads conform to ISO 7.1 Sealing Threads.
Model
Port Size (BSP)
Orifice ømm
CV
Pressure
Media Temperature
Weight Kg
Coil Specifications
4V120
1/8
5
0.67
1.5 to 8 Bar
5°C to 80°C
0.3
SC-A1 5 Watts 6 Volt Amps Class H Insulation 100% Ed
at for controlling cylinders and pneumatic actuators.The three position function allows the user to 'inch' or creep the actuator or cylinder. IP65 weatherproof coil an LED DIN plug. Threads conform to ISO 7.1 Sealing Threads
Model
Port Size (BSP)
Orifice ømm
CV
Pressure
Media Temperature
Weight Kg
Coil Specifications
4V230
1/4
7
2
1.5 to 8 Bar
5°C to 80°C
0.35
SC-A1 5 Watts 6 Volt Amps Class H Insulation 100% Ed
