The FNC Dust Collector range is the result decades of experience in dust filtration technology. Since it went into production, tens of thousands of units have left the Group’s manufacturing plants all over the world. In diverse configurations FNC has proved to be suitable for a variety of applications in virtually all industries.Share this topic
The FNC Dust Collector range is the result decades of experience in dust filtration technology. Since it went into production, tens of thousands of units have left the Group’s manufacturing plants all over the world. In diverse configurations FNC has proved to be suitable for a variety of applications in virtually all industries.Share this topic
TECHNICAL SPECS
Description
FNC Dust Collectors are equipped with a cylindrical stainless-steel casing and flanged bottom ring, which contains vertically mounted bag-type, cartridge-type or high-efficiency filter elements.
A compressed air pulse-jet filter element cleaning system is integrated into the hinged top cover or connecting top flange.
FNC Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, FNC can be equipped with a large front door which facilitates access to the filter elements form the dirty air side in case of inspection or maintenance.
FNC is supplied with an integrated modular electronic control panel that manages cleaning cycles according to the specific requirements of the work process.
The collector can be installed on top of a silo or on any other equipment that requires dedusting (belt conveyor, bucket elevator, chain conveyor, etc.), or as a“stand-alone”unit fixed on a standard DK-type dust collecting hopper.

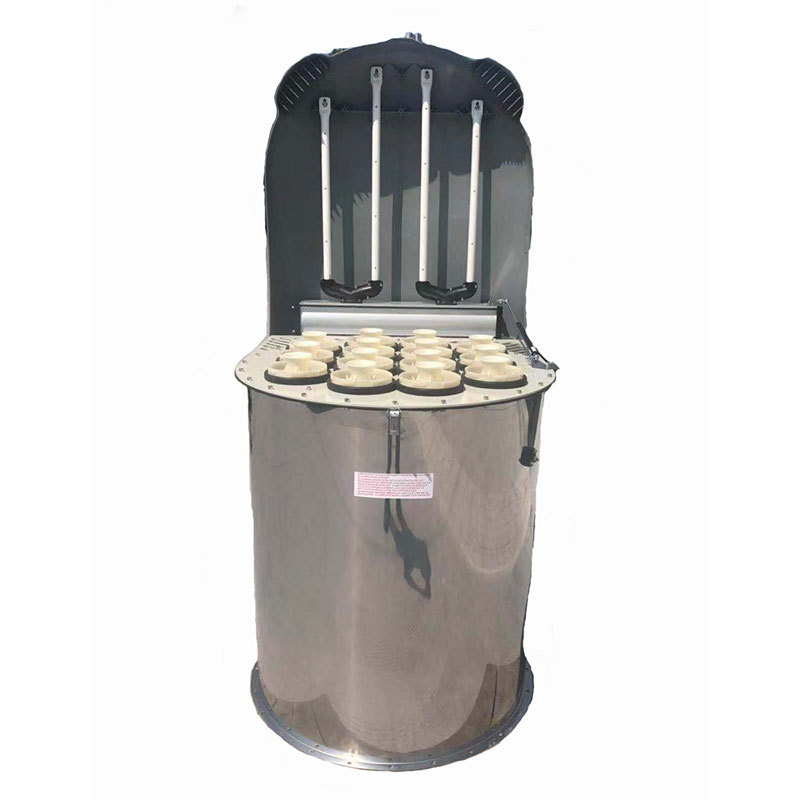

Flanged Round Dust Collectors
Function
FNC separates dust particles carried in suspension by an air flow using filter elements. The dusty air current passes through the filter media, which holds back the dust particles allowing the air to flow through.
FNC Dust Collectors can be configured for venting, suction and vacuum applications.
Compressed air pulse-jet cleaning system (4 ~ 6 bar)
Dust temperature: -20 ~ 80°C (-4 ~ 176°F)
Cylindrical stainless-steel casing with bottom flange
Quick and safe filter element replacement from clean or dirty air side
Multifunctional multi-voltage electronic control panel
Tool-free filter element replacement
Designed for outdoor installation
Benefits
Low emission level due to filter elements and media
Easily configurable for a wide range of dusts
Reliable, versatile and durable for a variety of applications
High cleaning efficiency due to "Full Immersion" solenoid valves incorporated into aluminium air tank
Low air consumption with FILCONTROL CONNECT
Easy and quick installation and maintenance
Multiple voltages meeting different electric specifications
Worldwide after-sales service and spare parts provided by subsidiaries
Options
Fan or connecting flange for centralised dust suction
Insertable and/or vacuum versions available
Increased casing thickness
304 / 316 stainless-steel casing and seal frame
Inspection hatch or maintenance door
Flanged or clamped connection
Advanced electronic control panel with a variety of controls and differential pressure meter (MDPE)
Winter protection for solenoid valves
Accessories
Dust collecting HOPPER with flow aid, butterfly valve and bucket
Flanged or clamped BOTTOM RING
Choke VALVE and SILENCER
Dust emission SAMPLING KIT
ELBOW for lateral connection
