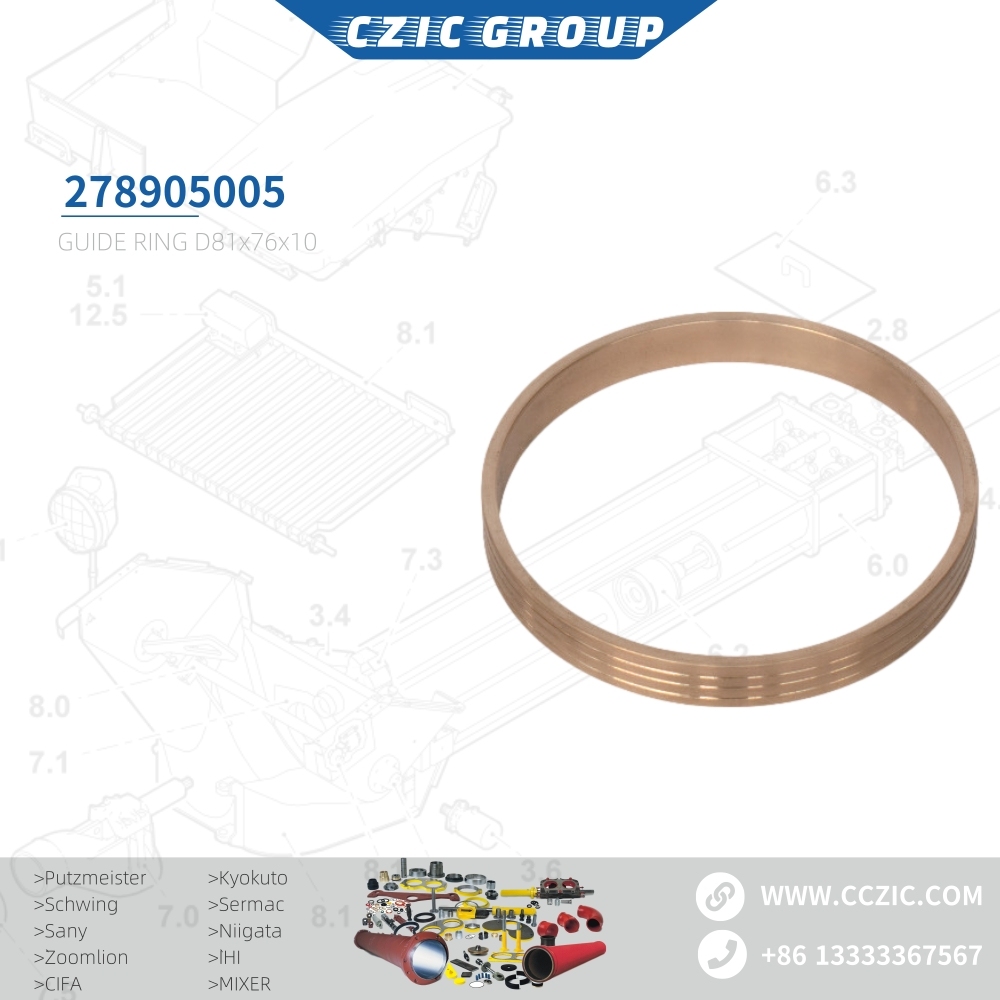

Comprehensive Guide to GUIDE RING D81x76x10: Precision Engineering for Hydraulic Systems
Introduction
In high-performance hydraulic and pneumatic systems, component precision directly impacts operational efficiency and longevity. The GUIDE RING D81x76x10 exemplifies engineering excellence, designed to optimize alignment, reduce friction, and prevent metal-to-metal contact in dynamic applications. This critical wear ring ensures smooth piston or rod movement while extending the service life of cylinders and seals.
Product Specifications
Dimensions:
Outer Diameter (OD): 81 mm
Inner Diameter (ID): 76 mm
Thickness: 10 mm
Material Composition:
Engineered from reinforced PTFE (Polytetrafluoroethylene) composite, infused with bronze or carbon fillers for enhanced load-bearing capacity and thermal stability.
Operating Parameters:
Temperature Range: -50°C to +200°C
Pressure Tolerance: Up to 40 MPa (dynamic)
Compatible Fluids: Hydraulic oils, water-glycol, HFA fluids, and corrosive media.
Key Features & Benefits
Ultra-Low Friction Coefficient (µ ≤ 0.04):
Minimizes energy loss and heat generation, improving system efficiency by up to 15%.
Zero Swell/Shrinkage:
Maintains dimensional stability in diverse thermal and chemical environments.
Anti-Extrusion Design:
Precision-tolerance geometry prevents ring deformation under high-pressure cycling.
Target Applications
Heavy Machinery: Hydraulic cylinders in excavators, presses, and injection molding equipment.
Automotive Systems: Shock absorbers and suspension components.
Industrial Automation: Linear actuators and pneumatic pistons.
Renewable Energy: Hydraulic pitch control systems in wind turbines.
Why Choose GUIDE RING D81x76x10?
Quality Certification: Manufactured under ISO 9001:2015 standards with batch traceability.
Customization: Optional variants include conductive PTFE (for static dissipation) or glass-fiber reinforcement.
Lifecycle Advantage: Outperforms nylon/polyamide rings by 3x in accelerated wear tests (per ASTM D3702).
Technical Support & Procurement
Partner with us for:
FEA Simulation Reports: Stress distribution analysis for your specific assembly.
Rapid Prototyping: 72-hour sample delivery for validation.
Global Logistics: DDP (Delivered Duty Paid) to 50+ countries.
Request a datasheet or material certification: Contact our engineering team at [sales@domain.com] or visit [product page link].
TKD Metadata
Title:
GUIDE RING D81x76x10 | High-Performance Wear Ring for Hydraulic Cylinders
Keywords:
PTFE guide ring
Hydraulic cylinder wear band
D81x76x10 guide ring
Low friction piston ring
Industrial sealing solutions
Description:
Discover the GUIDE RING D81x76x10: A precision-engineered PTFE wear ring (81mm OD, 76mm ID, 10mm thickness) for hydraulic/pneumatic systems. Features ultra-low friction, anti-extrusion design, and ISO 9001 certification. Ideal for heavy machinery, automation, and renewable energy applications. Request a quote today.
