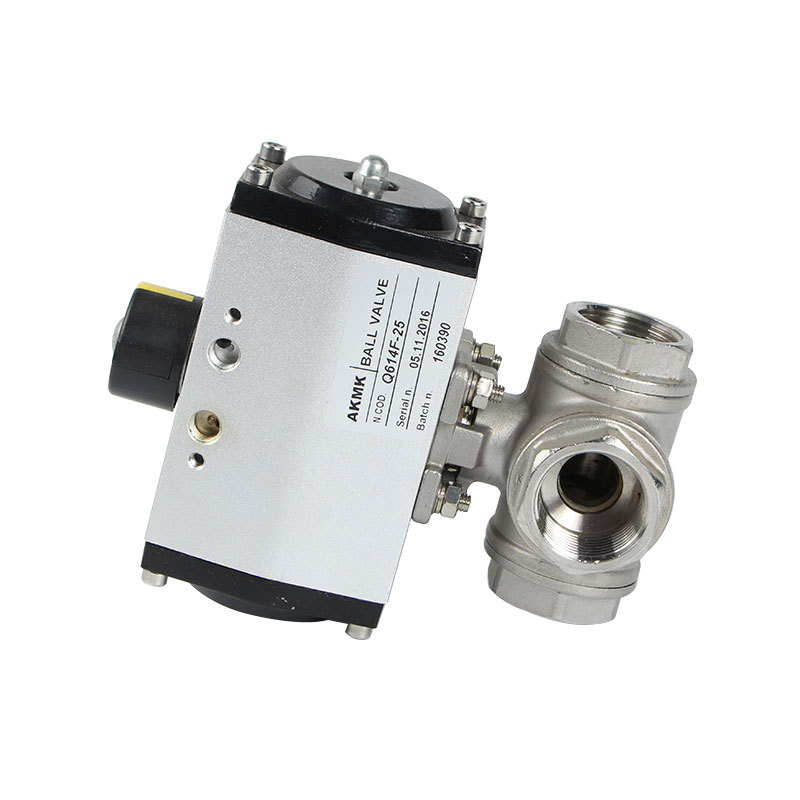

Q614 Series three-way ball valve

stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port and L-port flow pattern. There is no flow shutoff position with this type valve.
  • Description

  • Payment Method

  • Shipping&Returns

  • Contact Us

Description

stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port and L-port flow pattern. There is no flow shutoff position with this type valve.





Features

1000 PSI working pressure (see P/T chart)

Full port design

316 stainless steel body, ball and stem

Four ball seat design allows for full pressure at any port

PTFE ball seats for extend cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Valve direct mounts to actuator per ISO5211



Pneumatic Actuator Standard Features

Extended cycle life (1 million cycles)

Rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester covers

Namur & ISO mounting





Pipe Size

1-1/2" NPT female

Port Size

Full Port, orifice 1.50 inches, Cv 49

Pressure (Max)

1000 PSI see P/T chart, vacuum up to 29inHg

Working Temperature of Assembly

0-180 °F (media 0-300 °F with optional valve mounting kit)

Valve Body

316 stainless steel CF8M

Ball

316 stainless steel

Stem Seals

PTFE (Teflon), Viton

Ball Seats

PTFE (Teflon)

Valve Rated Temperature

-4 to 325 °F (-20 to +163 °C)

Actuator Temperature

0-180 °F

Cycle Time

Approx. 1 second per 90° rotation

Air Pilot Pressure

80-120 PSI

Air Connections

1/4" NPT (plus NAMUR pad for solenoid valve)

Actuator Seals

NBR




Pipe Size

1-1/2" NPT female

Port Size

Full Port, orifice 1.50 inches, Cv 49

Pressure (Max)

1000 PSI see P/T chart, vacuum up to 29inHg

Working Temperature of Assembly

0-180 °F (media 0-300 °F with optional valve mounting kit)

Valve Body

316 stainless steel CF8M

Ball

316 stainless steel

Stem Seals

PTFE (Teflon), Viton

Ball Seats

PTFE (Teflon)

Valve Rated Temperature

-4 to 325 °F (-20 to +163 °C)

Actuator Temperature

0-180 °F

Cycle Time

Approx. 1 second per 90° rotation

Air Pilot Pressure

80-120 PSI

Air Connections

1/4" NPT (plus NAMUR pad for solenoid valve)

Actuator Seals

NBR
