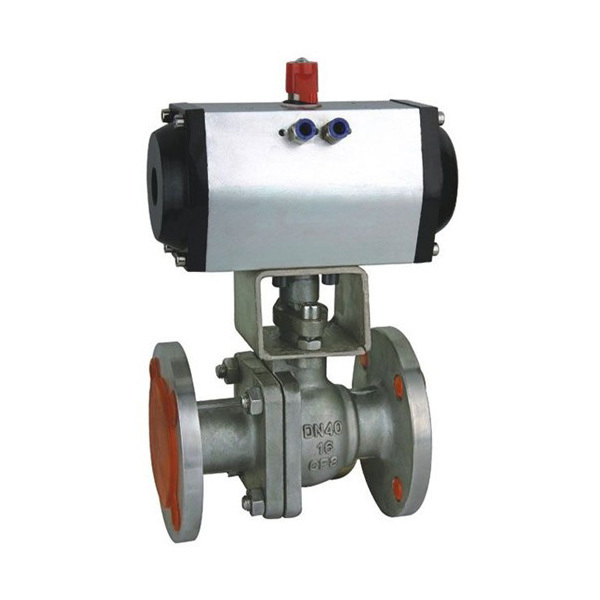

Specifications
Materials
Body: Carbon Steel or Stainless Steel
Seats: TFM or 50/50
End Connections
ANSI 150# (1/2" to 8")
ANSI 300# (1/2" to 8")

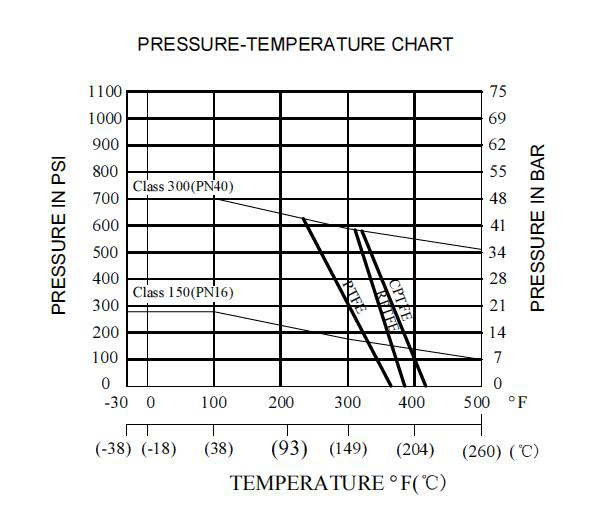

Temperature Range:
TFM: 475°F
50/50: 525°F
Maximum Pressure:
Maximum differential pressure of 275 PSI, WCB - 285 PSI.
Hydrostatically pressure tested (body) and air pressure tested (seat) to the following:
ANSI 150#:
Stainless steel: 425 PSIG
Carbon steel: 450 PSIG
ANSI 300#:
Stainless steel: 1,100 PSIG
Carbon steel: 1,125 PSIG
Standard Steam Working Pressure:
150 SWP
Optional 300 PSIG
Available Actuators
Weatherproof Electric
Explosion Proof Electric
Pneumatic (single & double acting)
4-20 mA, or 3-15 psi Positioners for pneumatic
Manual Lever
Manual Lever with Limit Switch
Typical Applications
Refineries
Petrochemical
Chemical Process Equipment
Process Control Applications
Water and Waste applications
Pipeline applications
|
Model |
Size (mm) |
Actuator |
Media Pressure |
Media Temperature |
Actuator Pressure |
|
Q641F-16C/P-15 |
15 |
DA50 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-20 |
20 |
DA50 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-25 |
25 |
DA50 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-32 |
32 |
DA63 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-40 |
40 |
DA63 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-50 |
50 |
DA75 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-65 |
63 |
DA88 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-80 |
80 |
DA100 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-100 |
100 |
DA115 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-125 |
125 |
DA145 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-150 |
150 |
DA160 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |
|
Q641F-16C/P-200 |
200 |
DA180 |
Vacuum to 20 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 BAR |

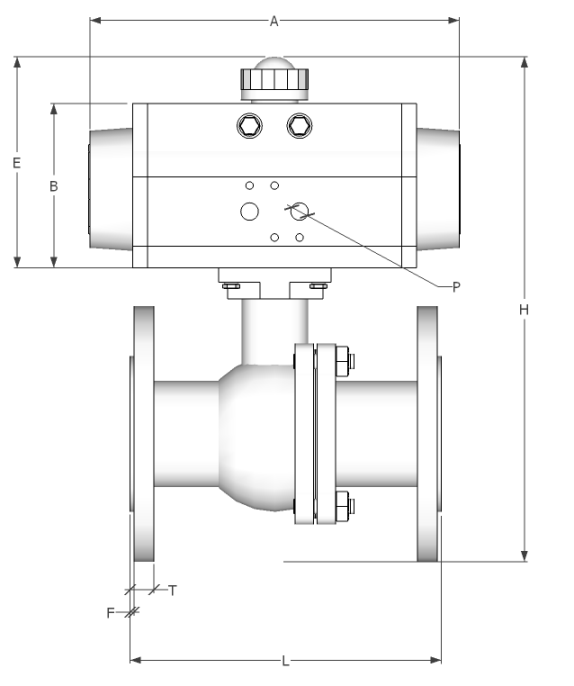

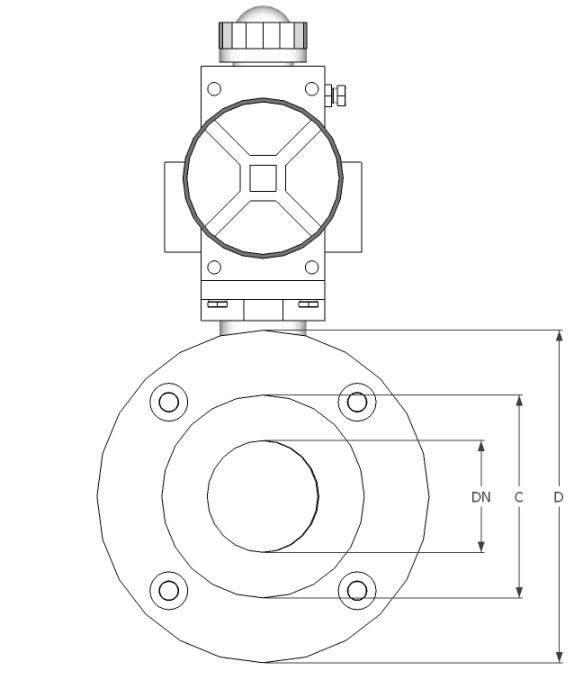

DIMENSIONS
|
DN (mm) |
A |
B |
C |
D |
E |
F |
H |
L |
T |
Actuator |
P |
|
15 |
139 |
69 |
60.5 |
89 |
89 |
1.6 |
185 |
108 |
11.2 |
DA50 |
1/8” |
|
20 |
139 |
69 |
70 |
98 |
89 |
1.6 |
197 |
117 |
11.2 |
DA50 |
1/8” |
|
25 |
139 |
69 |
79.5 |
108 |
89 |
1.6 |
207 |
127 |
12 |
DA50 |
1/8” |
|
32 |
162 |
80 |
89 |
117 |
100 |
1.6 |
244 |
140 |
12.7 |
DA63 |
1/8” |
|
40 |
162 |
80 |
98.5 |
127 |
100 |
1.6 |
264 |
165 |
14.3 |
DA63 |
1/8” |
|
50 |
207 |
97 |
120.5 |
152 |
117 |
1.6 |
289 |
178 |
15.9 |
DA75 |
1/8” |
|
65 |
237 |
108 |
139.5 |
178 |
128 |
1.6 |
328 |
190 |
17.5 |
DA88 |
1/8” |
|
80 |
271 |
121 |
152.5 |
190.5 |
141 |
1.6 |
363 |
203 |
19.1 |
DA100 |
1/4" |
|
100 |
328 |
141 |
190.5 |
229 |
171 |
1.6 |
447 |
229 |
22 |
DA115 |
1/4" |
|
125 |
428 |
176 |
216 |
254 |
206 |
1.6 |
565 |
356 |
23.9 |
DA140 |
1/4" |
|
150 |
430 |
192 |
241.5 |
279 |
222 |
1.6 |
623.5 |
394 |
25.4 |
DA160 |
1/4" |
|
200 |
482 |
222 |
298.5 |
343 |
252 |
1.6 |
728.5 |
457 |
28.6 |
DA180 |
1/4" |

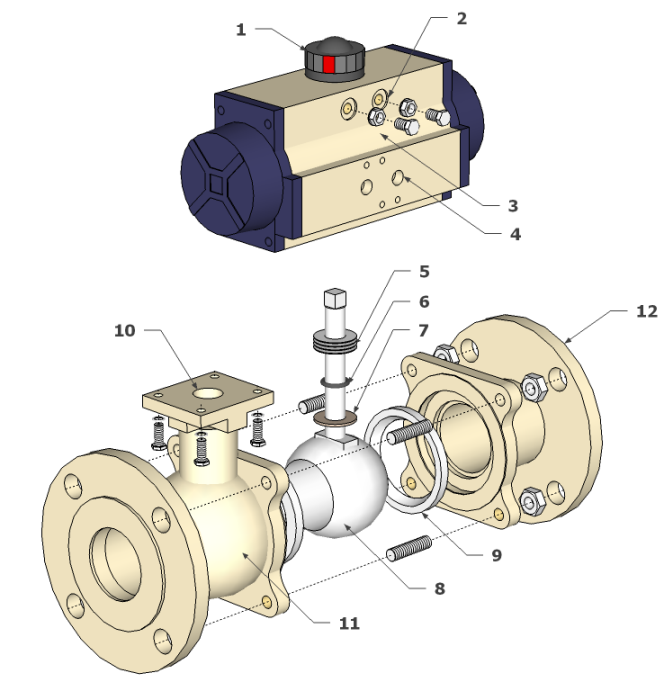

CONSTRUCTION
|
Item |
Article |
Material |
|
1 |
Visual Indicator |
UV Stabilised Thermoplastic |
|
2 |
Adjustable Stops |
316 Stainless Steel |
|
3 |
Spring Return Pneumatic Actuator |
Sealed Aluminium |
|
4 |
Pressure Ports / Namur Interface |
Sealed Aluminium |
|
5 |
Chevron Seals |
Carbon Reinforced Teflon |
|
6 |
Backing O-ring |
Viton |
|
7 |
Thrust Washer |
Carbon Reinforced Teflon |
|
8 |
Ball |
Polished 316 Stainless Steel |
|
9 |
Seats |
Carbon Reinforced Teflon |
|
10 |
Mounting Pad |
Cast Steel & Stainless Steel |
|
11 |
Body |
Cast Steel & Stainless Steel |
|
12 |
Flange |
Cast Steel & Stainless Steel |
Size 15mm to 200mm
Body Carbon Steel & Stainless Steel
Seat Reinforced Carbon PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
