SD Butterfly valve

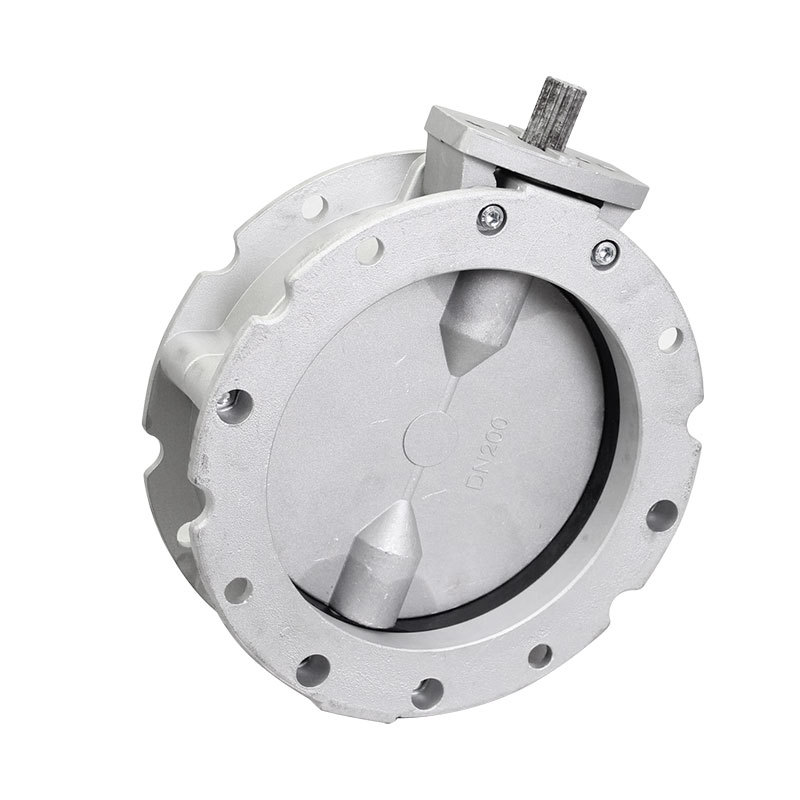

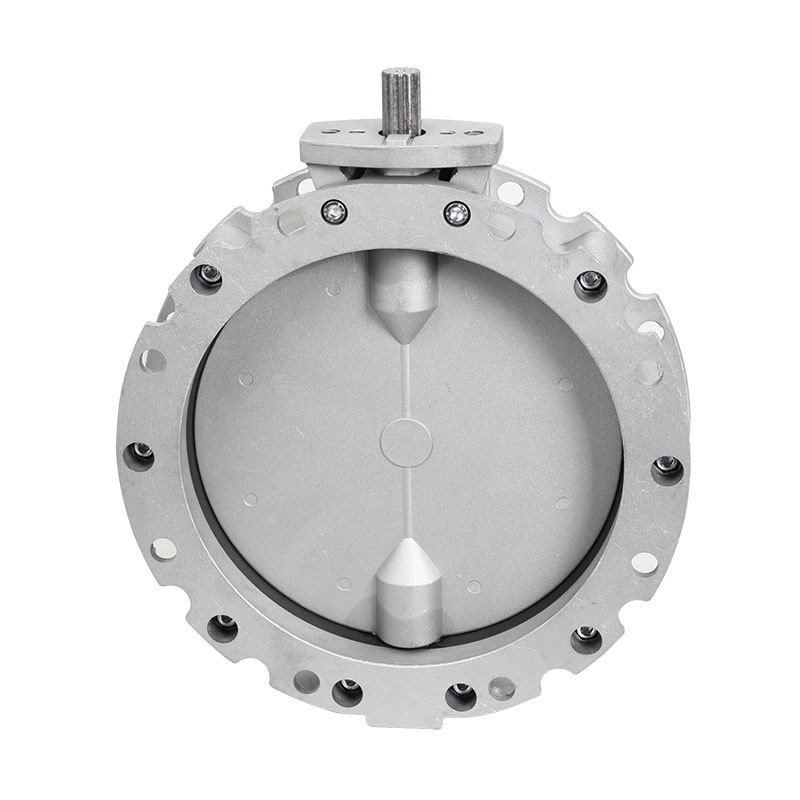

SD Butterfly Valves consist of two high-pressure aluminium alloy die-cast semi-bodies, aluminium swivel disc, and a pre-stressed elastomer seal.

For the food industry a  version with stainless steel disc and an FDA/EN-approved, integral seal is available.Available in a fully stainless steel housing.

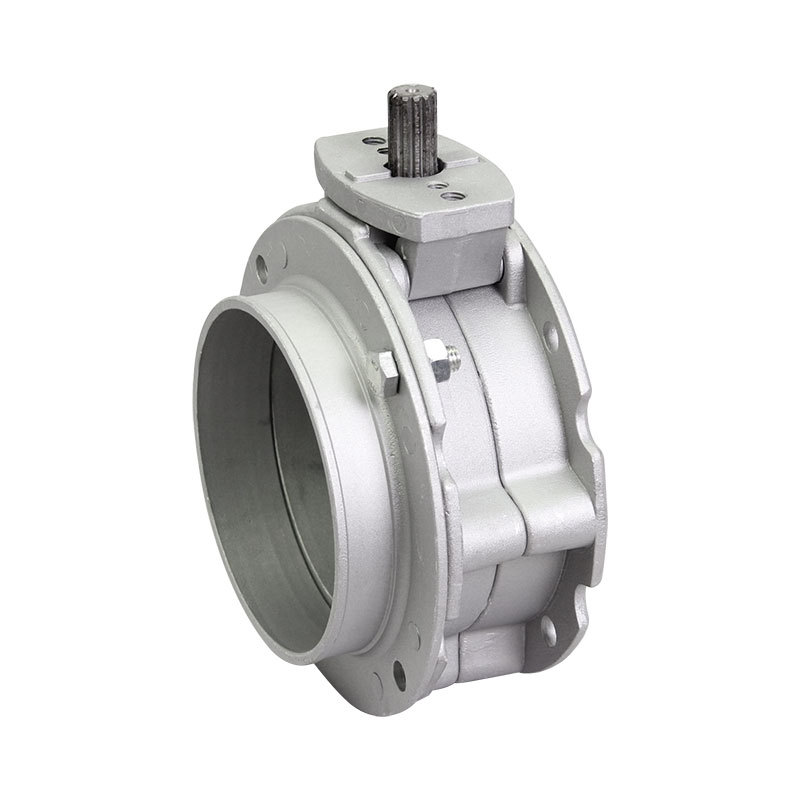

While SD has a top flange and beaded bottom section  suitable for the attachment of a flexible sleeve , SID comes with identical top and bottom flange.

Valve diameters from 4" to 16" are available

Model:
SD100
SD150
SD200
SD250
SD300
SD350
SD400
  • SD Butterfly valve
  • SD Butterfly valve
  • SD Butterfly valve
  • Desciption

  • Payment Method

  • Shipping&Returns

  • Contact Us

eries SD Butterfly Valves

Check up to five results to perform an action.



SD Series Butterfly Valves are used in all types of bulk solids processing plants where interception of gravity fed or pneumatically conveyed dry powders or granules are required.



SD Series Butterfly Valves can be fitted beneath hoppers, bins, silos or other type conveyors, or material interception in pneumatc conveying. Single or Double Flanged Models are available.



For closing bins, hoppers and silos containing powders or granular materials, SD Series Butterfly Valves are among the most widely used equipment worldwide.



What used to be custom-built items for specific applications, have been turned by AKMK into a mass-produced industrial product with features that allow extremely versatile use.



 Performance & Technical Features - Benefits:

  • S1D with top flange and beaded bottom section suitable for fixing of flexible sleeve
  • S2D with identical top and bottom flange
  • Pressure-proof up to 0.2 bar (2.9 PSI)
  • High-pressure die-cast semi-bodies manufactured from aluminium alloy
  • Disc in cast iron, engineering polymer, stainless steel
  • Seals for standard or food-grade application
  • Small number of components
  • Lightweight and easy to handle
  • Interchangeable discs
  • Highly abrasion-resistant
  • Easy to fit
  • Quick maintenance

Model: SD100,SD150,SD200, SD250 ,SD300,SD350,SD400


CODE

ØA

ØB

ØC

E

F

ØG

ØG1

Kg.

Fig.

SD-100

100

180

220

183

222



220

4,5

1

SD-150

150

200

228

233

272

18

228

5

1

SD-200

200

250

278

287

322

18

280

7

1

SD-250

250

300

328

337

372

18

335

8

2

SD-300

300

350

378

387

422

22

385

11

2


CODE

ØA

ØB

ØC

E

F

ØG

ØG1

Kg.

Fig.

SD-350

350

400

420

439

489

22

445

20

3

SD-400

400

470

530

509

559

25

515

23

4


CODE

A

B

C

F

ØN (DIN 54B2)

P

Q

R

S

ØT

Z

DA-80

92

285

130

66

19x22

65

90

54

76

8,5

50

DA-100

112

295

140

66

19x22

65

90

54

76

8,5

50

DA-125

137

430

196

89

25x28

68

106

60

84

10,5

80
