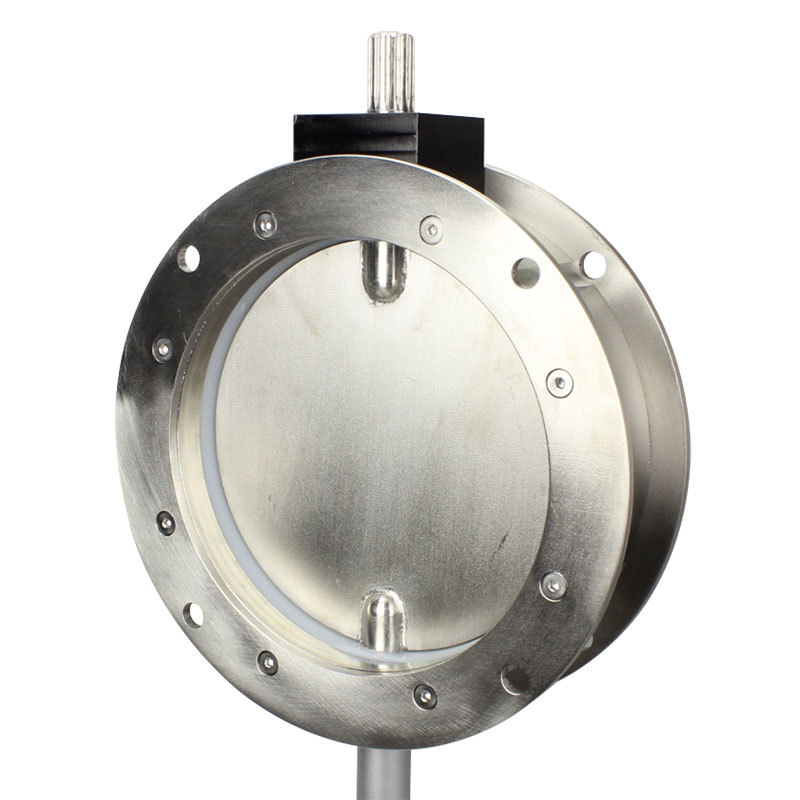

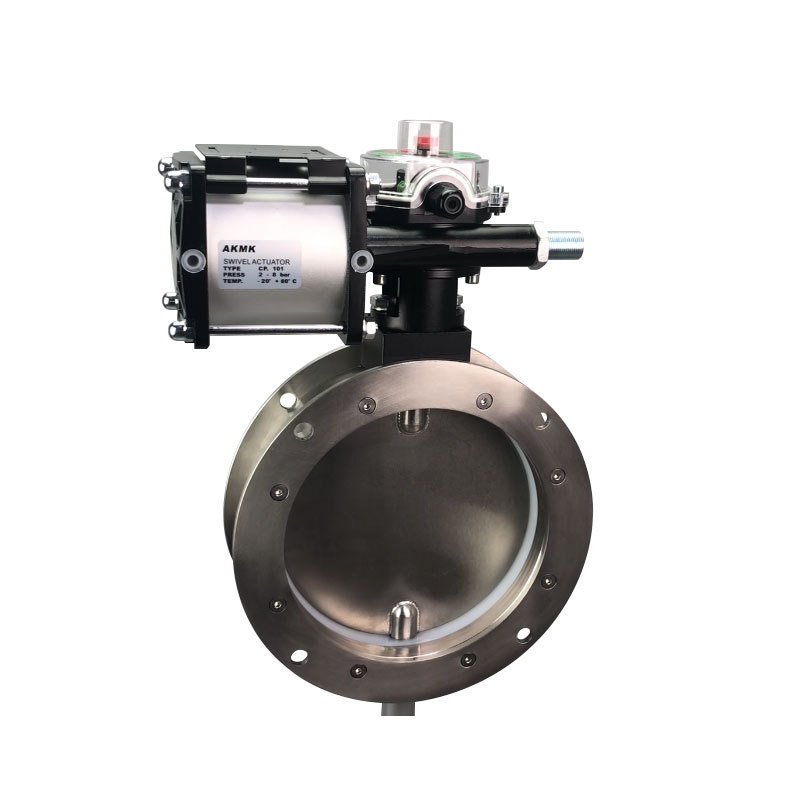

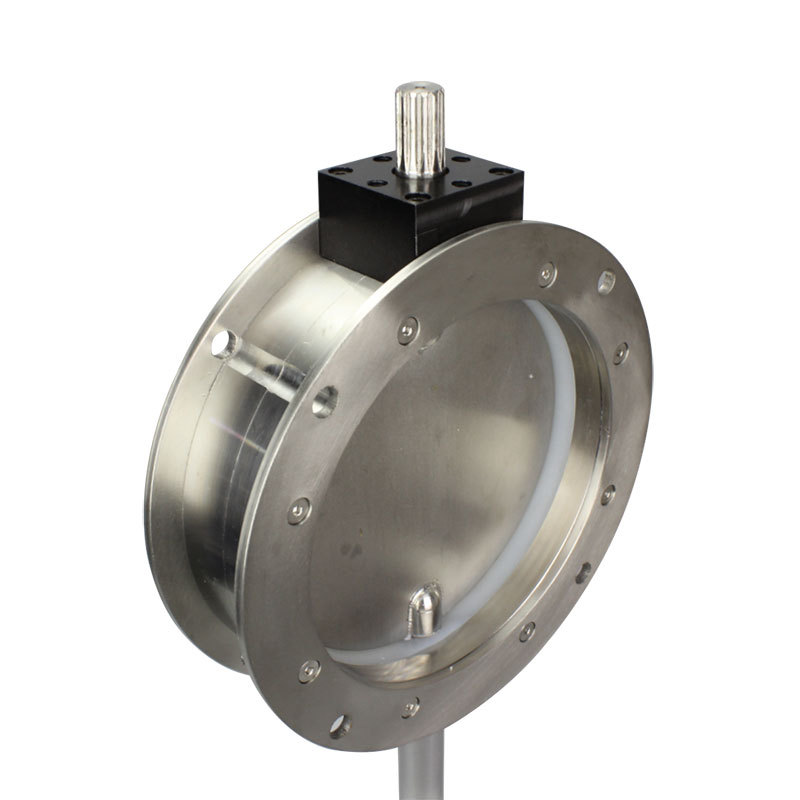

VFC Series Stainless Steel Powder Butterfly Valve

Function

To close silos, hoppers or bins containing powders or granules, VFC Butterfly Valves range among the most widely used equipment worldwide.

What used to be custom-built items for specific applications, VFC has turned into a mass-produced, industrial product with features that allow extremely versatile use.

VFC Butterfly Valves are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.

Model:
V1FC100
V1FC150
V1FC200
V1FC250
V1FC300
V1FC350
V1FC400
V2FC100
V2FC150
V2FC200
V2FC250
V2FC300
V2FC350
V2FC400
  • VFC Series Stainless Steel Powder Butterfly Valve
  • VFC Series Stainless Steel Powder Butterfly Valve
  • VFC Series Stainless Steel Powder Butterfly Valve
  • Desciption

  • Payment Method

  • Shipping&Returns

  • Contact Us

Features

V1FC with top flange and beaded bottom section suitable for fixing a flexible sleeve

V2FC with identical top and bottom flange

Valve sizes range from 4" to 16" and the DN100-DN400 is available.

Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)

Disc in stainless steel

Seals for standard or food-grade applications

Made up of few components

Used for powders, granules

Lightweight and easy to handle

Benefits

Highly abrasion-resistant

Easy to fit

Time-saving maintenance

Low operating and maintenance costs

Interchangeable discs

Ex-stock delivery

Options

ATEX -certified

Compliant with EN 1935/2004 standards

Food-grade version with stainless steel disc and integral seal



MODEL:V2FC100AS ,V2FC150AS, V2FS200AS ,V2FC250AS, V2FC300AS,V2FC350AS,V2FC400AS,

V1FC100AS ,V1FC150AS, V1FS200AS ,V1FC250AS, V1FC300AS,V1FC350AS,V1FC400AS​

Item #

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

R (mm)

S (mm)

T (mm)

U (mm)

V (mm)

Z (mm)

Weight (Kg)

V1FC100

95

180 220 105 250 115 35 22x19 220 40 80 M12 50 M10 4

V1FC150

150

200 228

163

290 115 35 22x19

228

40

80 M12

50

M10 5

V1FC200

200 250 278 213 340 115 35 22x19

278

40

80 M12

50

M10 6.5

V1FC250

250 300 328 263 390 115 35 22x19

325

40

80 M12

50

M10 7.5

V1FC300

300 350 378 313 440 115 35 22x19

375

40

80 M12

50

M10 9

V1FC350

350 400 440

363

530 123 50 28x25

440

40

80 M12 N/A M10 16

V1FC400

400 470 530

413

580 123 50 28x25

530

40 80 M12 N/A N/A 20.5

V2FC100

95 180 220

N/A

250 77 35

22x19

220

N/A 80 M12

50

M10 4

V2FC150

150 200 228 N/A 290 77 35

22x19

228

N/A 80 M12

50

M10 5

V2FC200

200 250 278 N/A 340 77 35

22x19

278

N/A 80 M12

50

M10 6.5

V2FC250

250 300 278 N/A 390 77 35 22x19

325

N/A 80 M12

50

M10 7.5

V2FC300

300 350 378 N/A 440 77 35 22x19

375

N/A 80 M12

50

M10 9

V2FC350

350 400 440 N/A 530 85 50

28x25

440

N/A 80 M12 N/A N/A 16

V2FC400

400 470 530 N/A 580 85 50 28x25

530

N/A 80 M12 N/A N/A 20.5
